A bit of history #

I’ve been working on SoC and device bringup as a Linux kernel hobbyist for a while now (~4 years). One or two years ago, I got my hands on a handheld device called Powkiddy X51. Of course, I did not intend to use it as-is. That’s boring. So naturally, I started messing with it as sonn as I got it. At first, there wasn’t much I could do: the system firmware files were stored on its NAND, and I couldn’t find any exposed UART ports. I tried running a small custom arm binary to write to the framebuffer, but that didn’t work, so I abandoned any further work.

Recently (1 or 2 months ago), I decided to revisit the project since a friend of mine also bought the same console. After a lot of digging (there’s almost no information about both the SoC and the device), I discovered the following:

• A tool from Actions Semi that allows flashing individual partitions on the NAND as long as a .fw file with a proper partition layout is provided (IH FW Burning tool).
• UART5 TX and RX are exposed on the SD card pins.
• Kernel source for the NeoGeo Arcade Stick Pro (which uses the same SoC, though with an older kernel - 3.4 instead of the newer 3.10 with device trees on my handheld).
• Android firmware files for ATM7051 tablets (though I’m likely not going to pursue that).
• Schematics for some random ATM7051 device.

Getting to work #

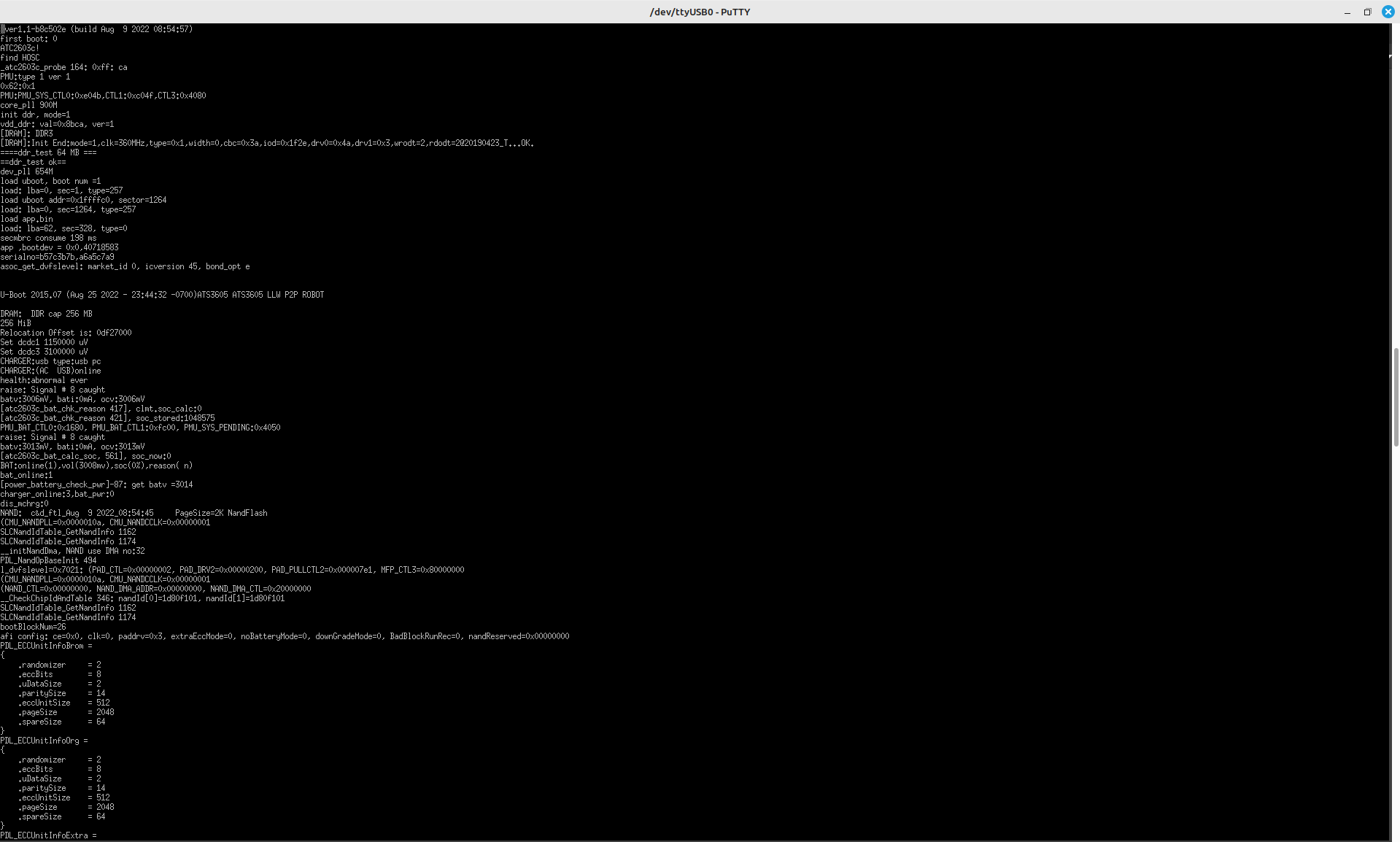

After disassembling the device, soldering a serial-to-USB adapter to the UART5 RX and TX, and finally firing up PuTTY, we got U-Boot logs!

And then it was time to do the hard work: getting mainline Linux to boot. The boot flow of the device is as follows:

• bootrom → spl → u-boot → linux → userspace

In order to boot my own build of the Linux kernel, we need to replace the downstream closed-source version. It resides in the first FAT16 partition of the device (called MISC). After dumping the whole NAND via ADB, I mounted the MISC partition image, modified the uenv.txt, and started testing/debugging my mainline Linux fork by flashing the modified MISC with the Actions IH FW Burning Tool.

Finally seeing the penguins #

It took quite a bit of work, but I managed to get the following peripherals working:

• Timer (actions,atm7051-timer)
• Multi-core (actions,atm7051-smp)
• Serial (actions,owl-uart)
• I2C (actions,s500-i2c)
• SIRQ (a second interrupt controller) (actions,atm7051-sirq)
• SPS (Smart Power System) (actions,atm7051-sps)
• DMA (actions,s500-dma)
• Partially pinctrl
• Regulators (actions,atc2603c)
• SimpleDRM (woo, display via framebuffer!)

And BOOM! Arch Linux initramfs with 4 fancy penguins on my handheld:

Remaining issues #

There are still a few issues to tackle:

• Pinctrl and clock drivers will be difficult to implement due to differences in coding styles and lack of documentation on pinctrl groups, functions, clock gate/div values, etc.
• There’s no NAND driver for any Actions SoC upstream. We’ll either need to write one or stick with MMC.
• I haven’t explored MMC deeply yet since clocks are required first, but it seems likely MMC won’t be controlled via the DMA block.
• The GPU driver isn’t open source. We can use proprietary blobs with hacks, but it’ll still be tricky.
• We can’t use both SD card and UART5 at the same time—using both results in garbled UART output.

I also tried compiling and booting the 3.4 kernel, which needs some changes to the board driver files since MMC isn’t wired to SIRQ on our device. It shouldn’t be too hard to get to initramfs. If anyone wants to work on that, feel free! It has more drivers available than my current mainline fork: linux-atm7051-3.4.

This device doesn’t seem to have bootloader signing, hence why I’ve also started working on upstream U-Boot. Currently it’s booting with working UART, which is capable of booting Linux via Kermit:

This will be useful if we ever get to fully replacing the outdated stock U-Boot.

Conclusion #

Honestly, don’t have huge expectations for the future. I don’t have that much motivation to keep working on this SoC, and I’d appreciate any help.

I’ll be upstreaming my work in the following weeks/months, and I also need to write more detailed instructions on how things work.

Useful Links #

(Note: I am in no way responsible for any damage you do to your device by trying to replicate what I’ve done. If you want to experiment with flashing directly to your NAND, proceed at your own risk.)

• My close-to-mainline Linux branch with ATM7051 commits: linux-atm7051
• Useful information like UART pins and schematics: FoxExe/PowKiddy_fw
• The Actions IH FW Burning tool: Google Drive link
